Technical Details


Maximum Diameter In DTH drilling 4" to 10" (101 mm to 254 mm)
In mud drilling 6" to 20" (152 mm to 508 mm)		 Pull Up Capacity 42,419 kgs
Maximum Depth In DTH drilling 350 meter
In mud drilling 300 meter		 Pull Down Capacity 31,814 kgs
Suitable air compressor 900 cfm @ 200 psi
1200 cfm @ 330 psi		 Suitable Mud Pump 6" x 6" hydraulic driven
double acting mud pump

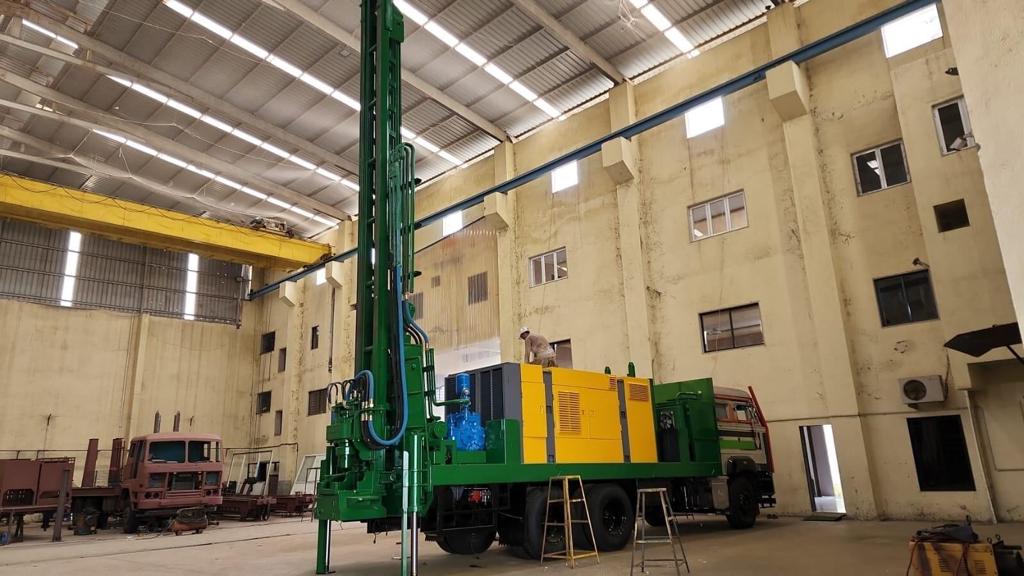

McD 300

McD 300 is very hot in water well sector drilling industries. Specially in African countries. Most of African countries they have water level near around 300mtr. For this it required 15? feet (3 mtr) drill pipe or 20? feet (6 mtr) drill pipe. This product model have two options are available one is single truck mounted with truck engine drive hydraulic operation and second is two truck mounted deck engine drive hydraulic operation. By using McD 300 you can drill up to max. 1000 feet (300mtr) in 4? (100mm) to 10? (250mm) drilling diameter.

✔ If drilling rig unit and air-compressor will be on single truck. Then you required other truck for carrying drill pipe, hammer, bit, and other material.
✔ It is easy to operate.
✔ Easy to maintain.
✔ Low maintenance.
✔ High efficiency.
