Technical Details


Maximum Diameter In DTH drilling 4" to 10" (101 mm to 254 mm)
In mud drilling 6" to 20" (152 mm to 508 mm)		 Pull Up Capacity 66,363 kgs
Maximum Depth In DTH drilling 600 meter
In mud drilling 500 meter		 Pull Down Capacity 46,325 kgs
Suitable air compressor 1200 cfm @ 330 psi
1500 cfm @ 400 psi		 Suitable Mud Pump 10" x 71/2"" hydraulic driven
double acting mud pump

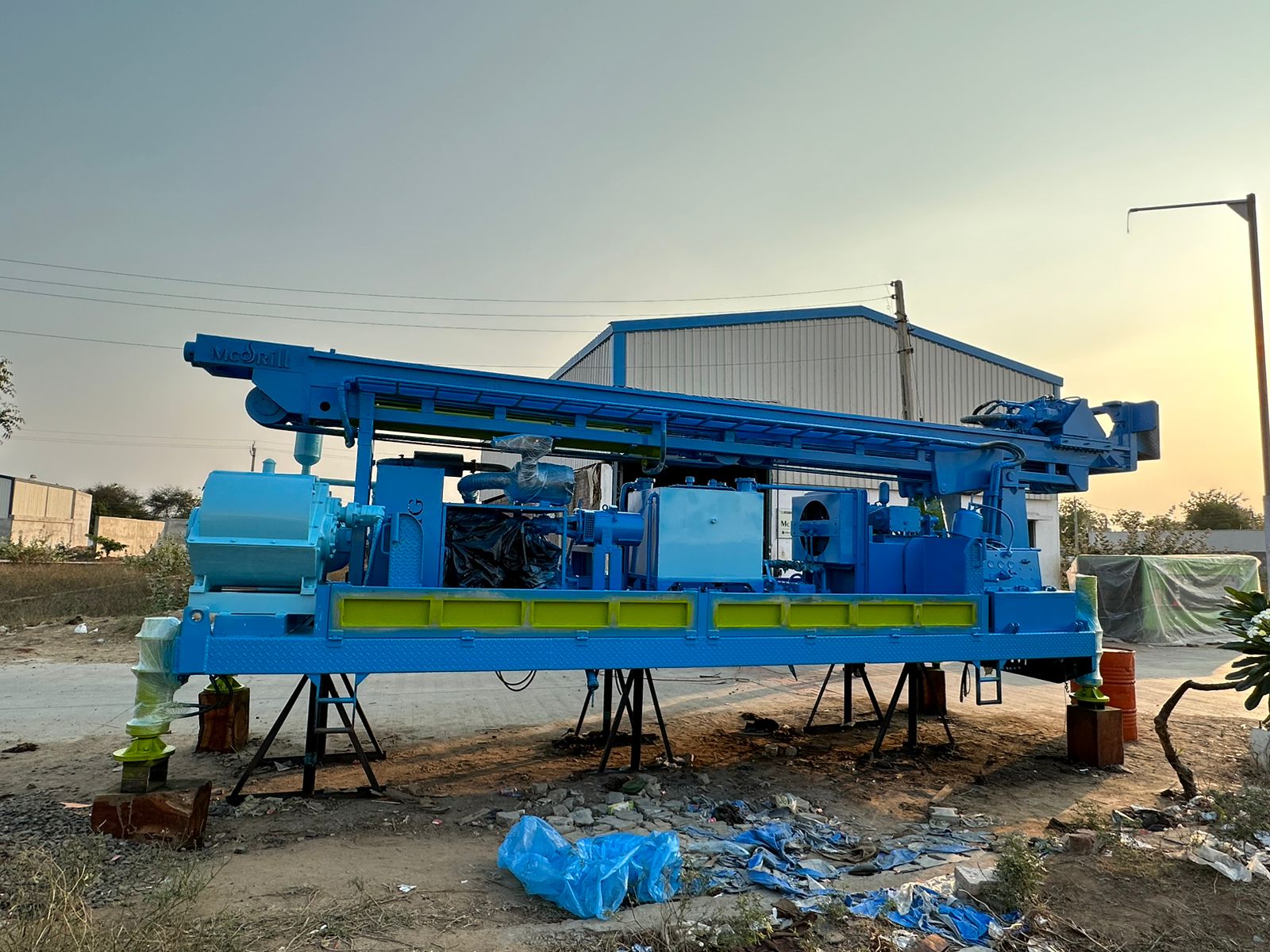

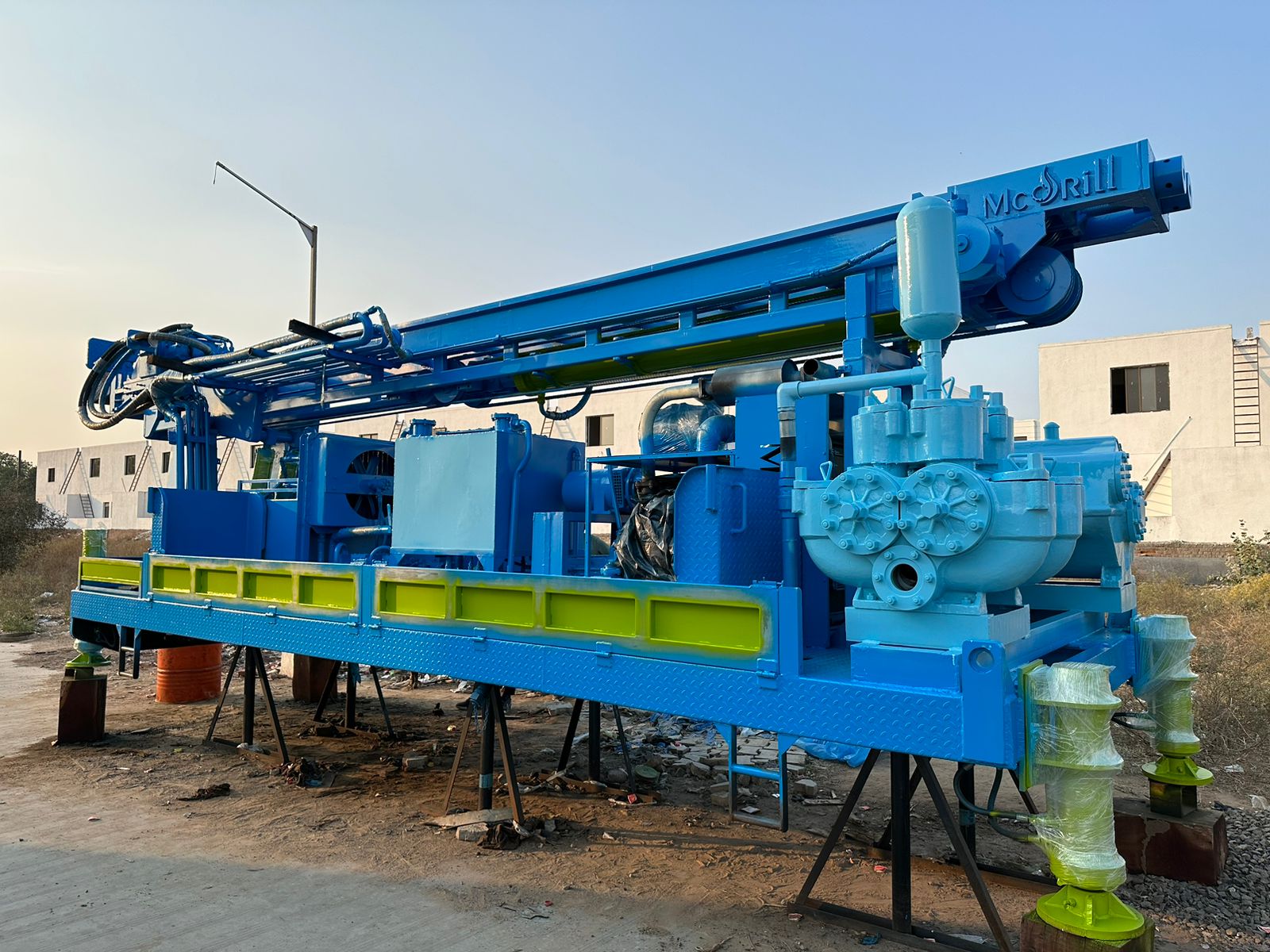

McD 600

McD 600 is specially required in that area where water level is very down means more than 400 mtr. Ethiopia, Somaliland is one of these types of countries. Now this product is very demanded from Ethiopian borehole contractor. For this it required 15? feet (3 mtr) drill pipe or 20? feet (6 mtr) drill pipe. This product model has only one option and that is two trucks mounted drilling rig. One for drilling rig unit deck engine drives hydraulic operation and second truck only for high air compressor with diesel tank. By using McD 600 you can drill up to max. 2000 feet (600mtr) in 4? (100mm) to 10? (250mm) drilling diameter.

✔ Drilling rig unit, air-compressor, drill pipe and hammer bit must be on single truck. So, no need to extra truck for carrying other material.
✔ It is easy to operate.
✔ Easy to maintain.
✔ Low maintenance.
✔ High efficiency.
