Technical Details
| Maximum Diameter | In DTH drilling 4" to 10" (101 mm to 254 mm) In mud drilling 6" to 20" (152 mm to 508 mm) |
Pull Up Capacity | 83,896 kgs |
| Maximum Depth | In DTH drilling 750 meter In mud drilling 600 meter |
Pull Down Capacity | 57,921 kgs |
| Suitable air compressor | 1200 cfm @ 330 psi 1500 cfm @ 400 psi |
Suitable Mud Pump | 10" x 71/2"" hydraulic driven double acting mud pump |

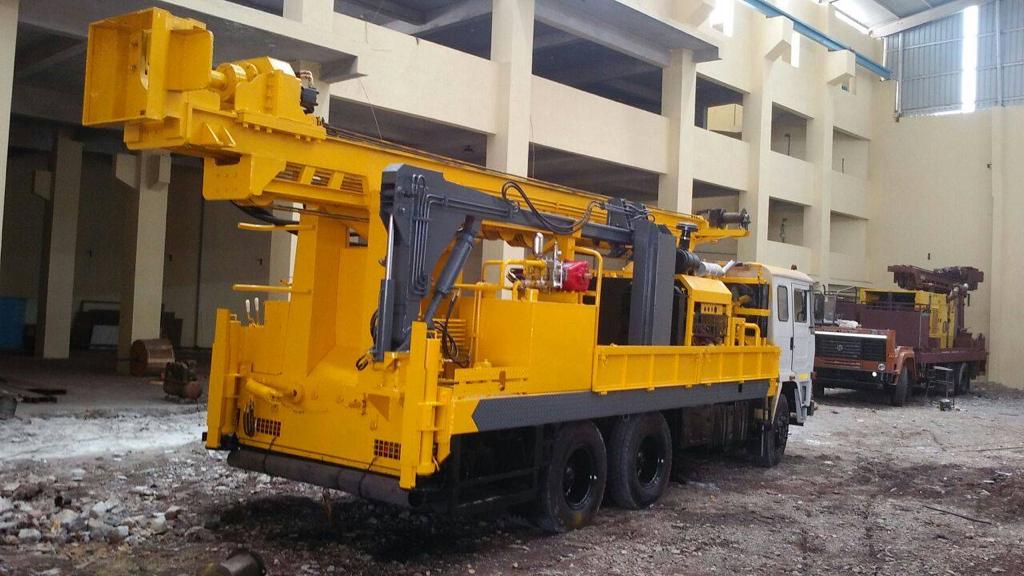

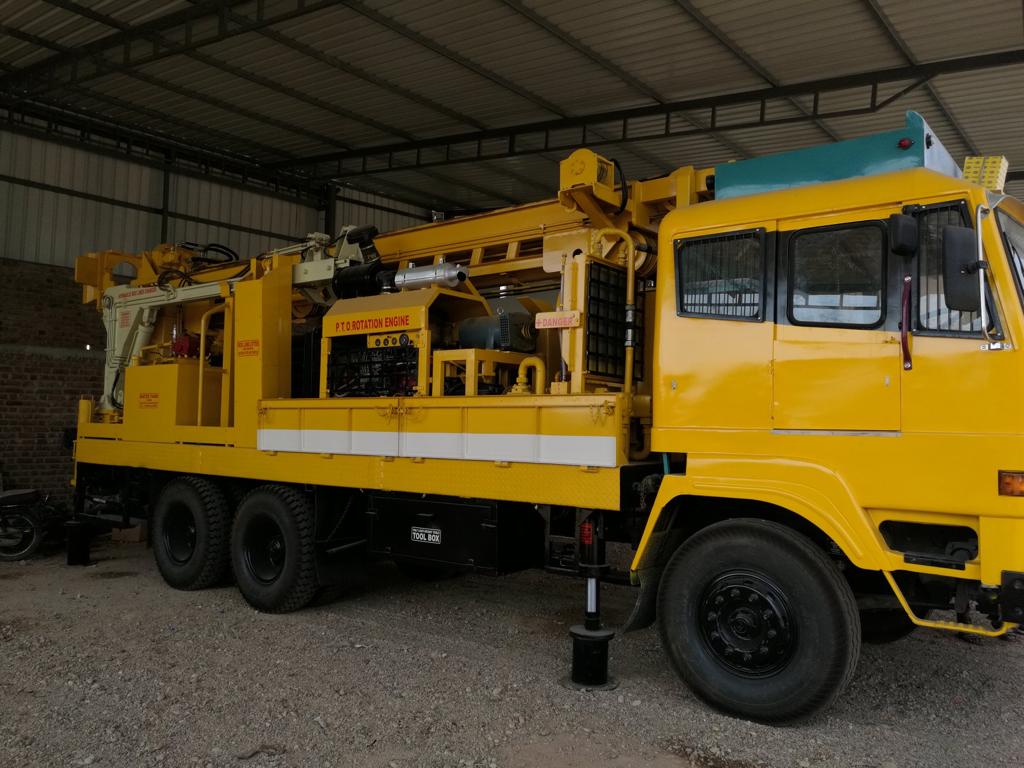

McD 750
McD 750 is specially required in that area where water level is very down means more than 600 mtr. Some time we got this requirement for 700mtr drilling depths. So, for those client we design this model. For this it required 15? feet (3 mtr) drill pipe or 20? feet (6 mtr) drill pipe. This product model has only one option and that is two trucks mounted drilling rig. One for drilling rig unit deck engine drives hydraulic operation and second truck only for high air compressor with diesel tank. By using McD 750 you can drill up to max. 2500 feet (750mtr) in 4? (100mm) to 10? (250mm) drilling diameter. In mud drilling by using mud pump you can drill up to Max. 1000 feet (300 mtr) in 22?(550mm) drilling diameter.
✔ Drilling rig unit, air-compressor, drill pipe and hammer bit must be on single truck. So, no need to extra truck for carrying other material.
✔ It is easy to operate.
✔ Easy to maintain.
✔ Low maintenance.
✔ High efficiency.
