Technical Details
| Maximum Diameter | In DTH drilling 4" to 8" (101 mm to 204 mm) In mud drilling 6" to 14" (152 mm to 355 mm) |
Pull Up Capacity | 25,976 kgs |
| Maximum Depth | In DTH drilling 200 meter In mud drilling 150 meter |
Pull Down Capacity | 15,371 kgs |
| Suitable air compressor | 900 cfm @ 200 psi 600 cfm @ 200 psi |
Suitable Mud Pump | 4" x 4" hydraulic driven Centrifugal pump |
| Suitable Tractor | 75 HP / 90 HP |
McD TR 200

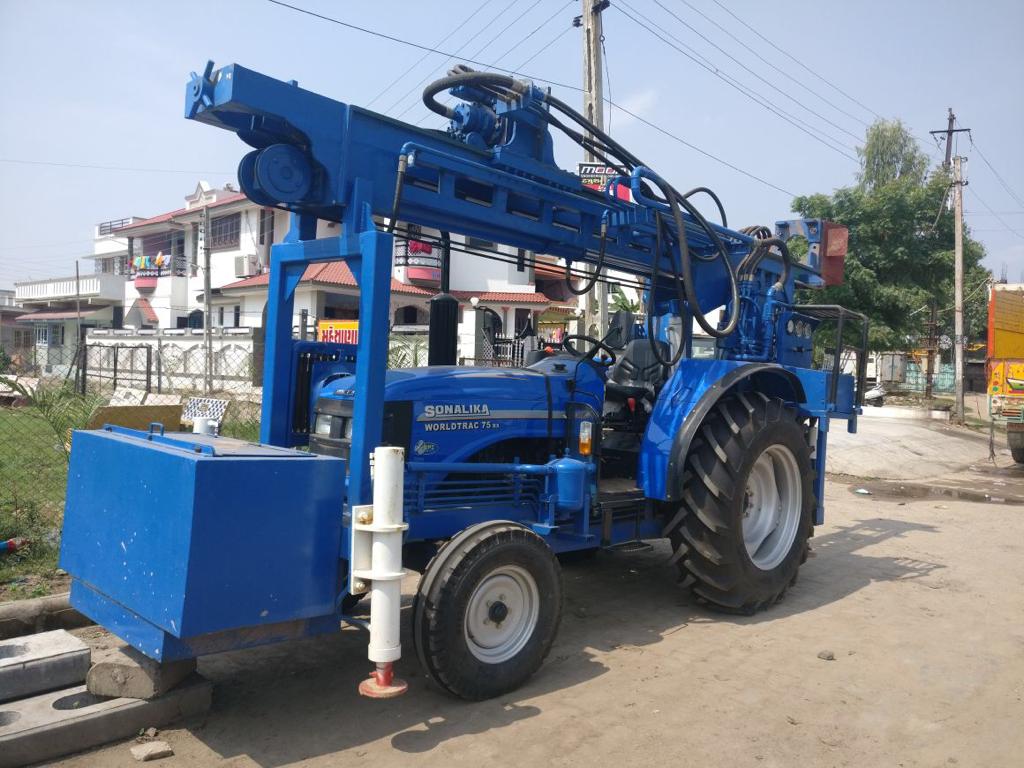

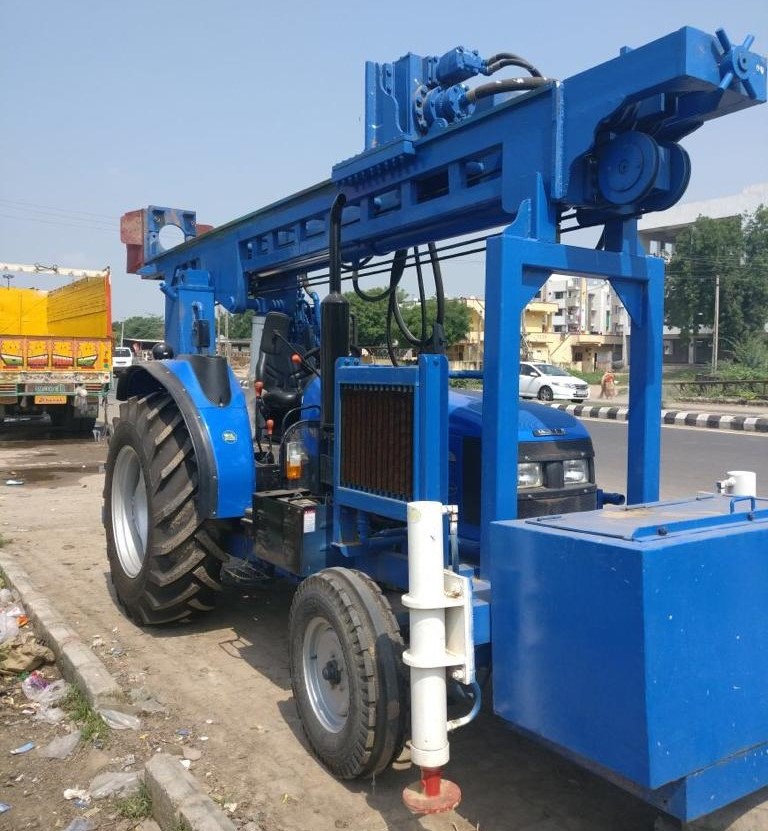

McD 200 TR is tractor mounted drilling rig. By using McD 200 TR you can drill up to max. 200 feet (60mtr) in 4" (100mm) to 8" (200mm) drilling diameter. For mud area we required centrifugal pump as water mud pump. Centrifugal pump is available in different capacity. We can design it on our client required drilling depth and diameter details. For hard rock required air compressor. It is also available in different models on capacity base. We can design it on our client required drilling depth and diameter details For this it required 10? feet (3 mtr) drill pipe. This product model series is required other vehicle for air compressor carrying. McD 200 TR drilling rig drives by tractor engine through Power tack off gear box.
✔ It is easy to operate.
✔ Easy to maintain.
✔ Low maintenance.
✔ High efficiency.
